Description

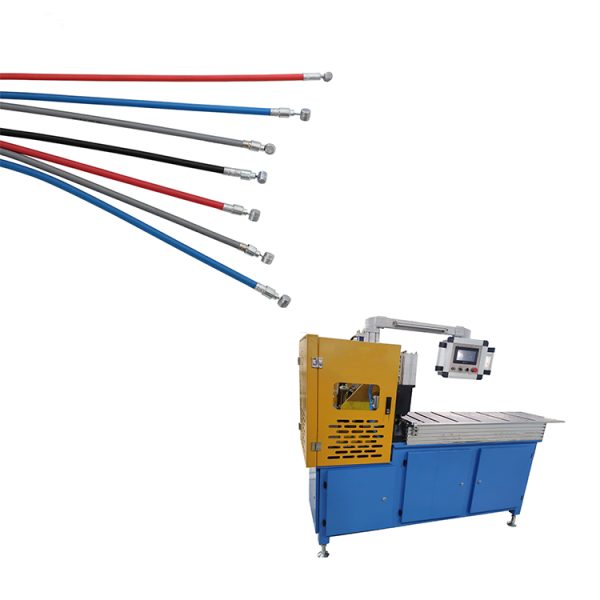

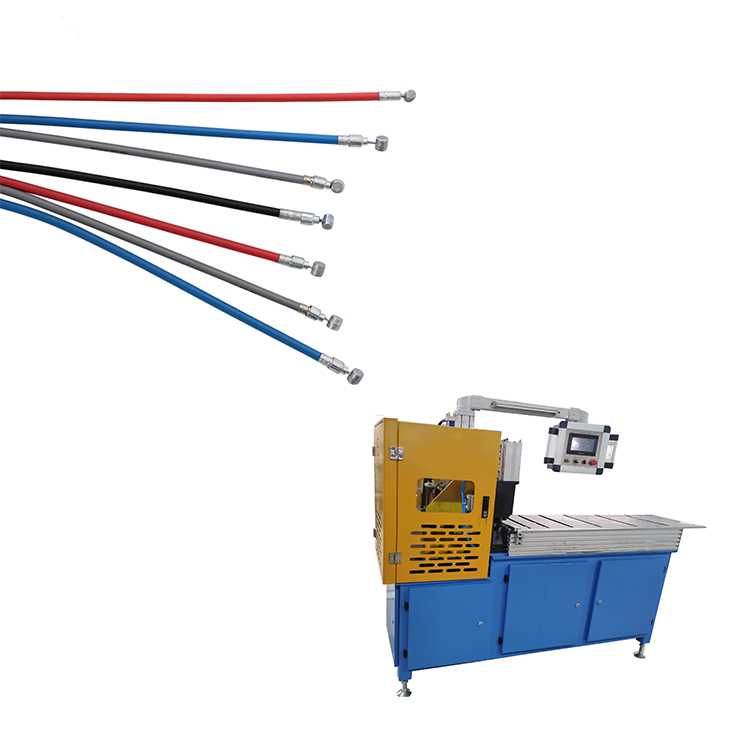

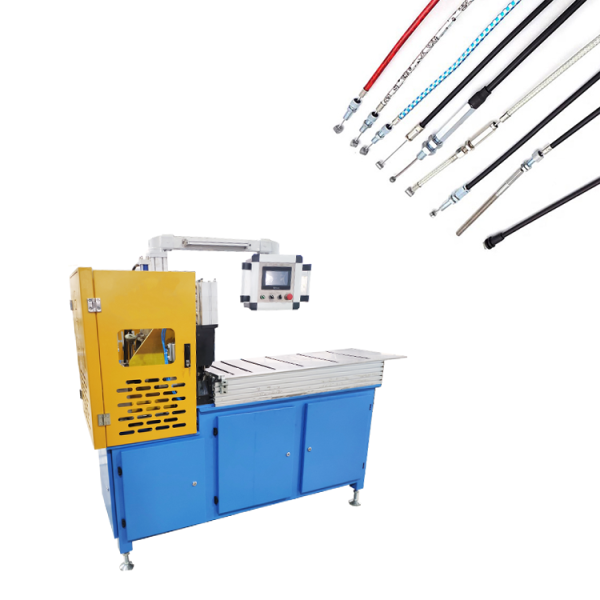

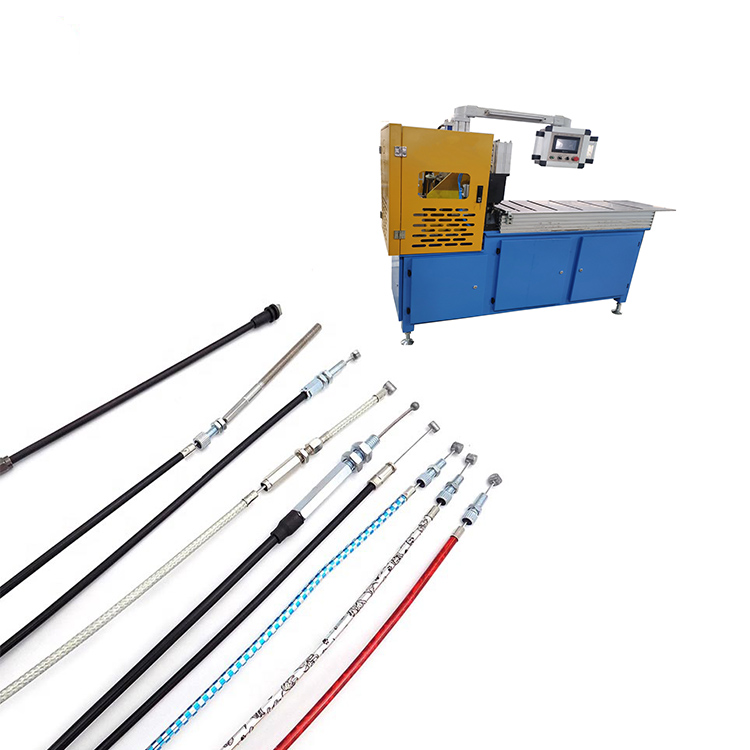

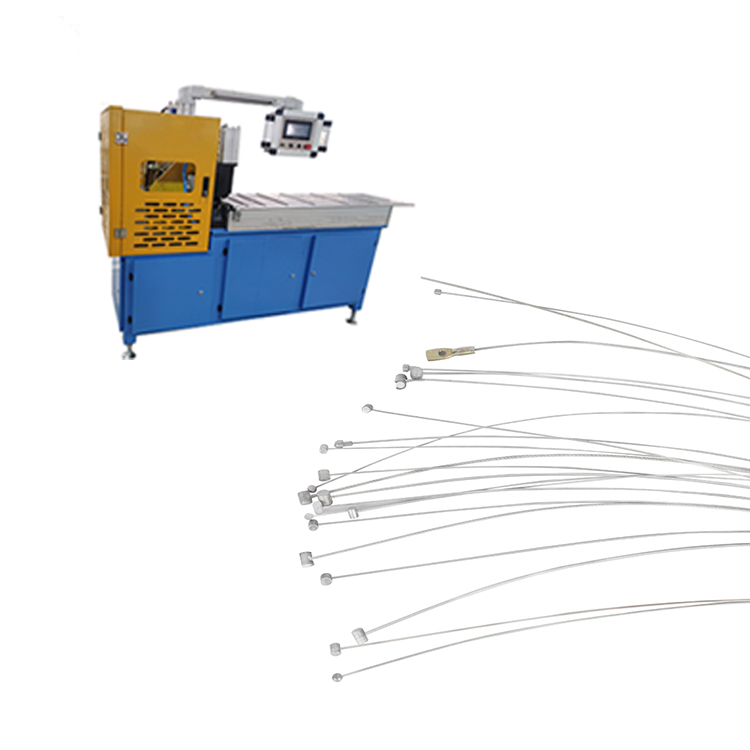

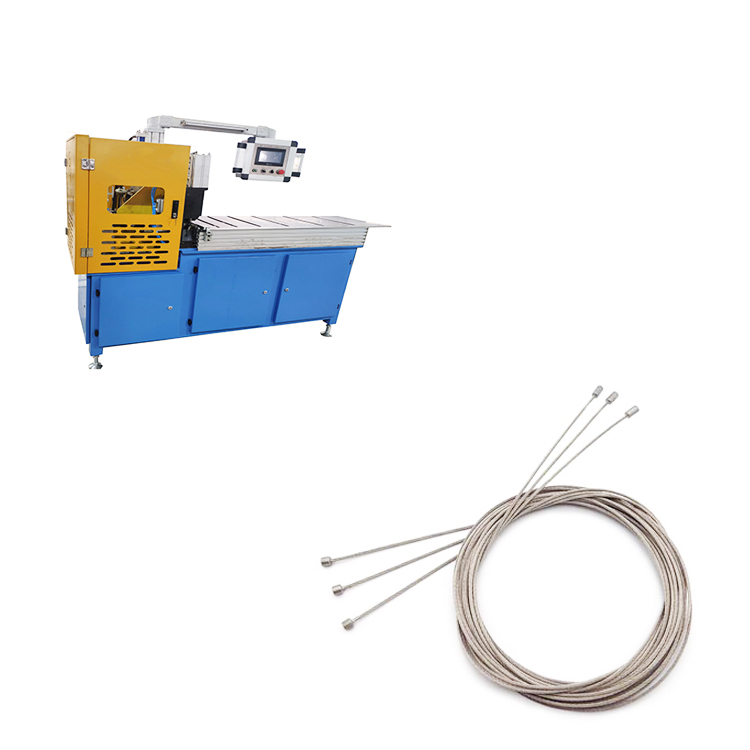

The Features of this die casting machine
- Automatic cutting stroke, patterning, die casting, deburring machine;
- The fastest line speed of a single piece from semi-finished product to finished product can reach 6 seconds;
- Can be customized with finished printing, finished tension length measurement, etc;
- The heating pipe adopts imported processing technology, and the furnace nozzle is made of cast iron;
- The maximum heating power is 3.2Kw, and the maximum insulation power is about 1.2kW;
- When making an appointment, no one will turn on or turn off automatically;
- The equipment is equipped with mold closing detection, automatic discharging and other devices;
What this machine can make?
Lead fishing, lead sinker, car brake cable, motorcycles brake cable，bike brake cable，key, knitting needle,electrical parts and so on…
How about the training?
Training to be provided at no cost in China during the warranty period. Training include operation,control,and maintenance of the machine.
Overseas training and support will be charge with a minimum of engineer visa,insurance, around flight ticket,accommodation(according to the actual fee) and labor cost(150usd/day).
Specifications
NO. | Name | Parameters |
1 | Speed | 6.2 s/pcs |
2 | Wire rope diameter | ф1.2-1.5mm |
3 | Voltage | AC 380V |
4 | Power | 6kw |
5 | Machine weight | 1050KG |
6 | Machine Dimensions | 2545*1200*1720 mm |
