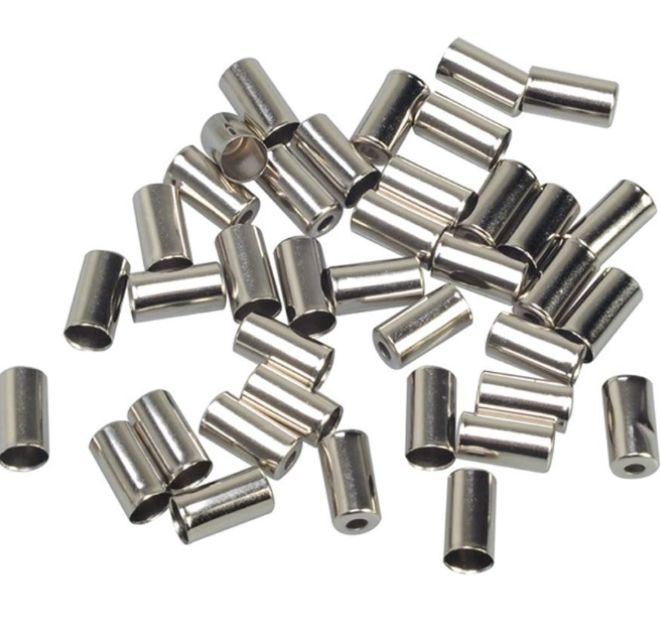

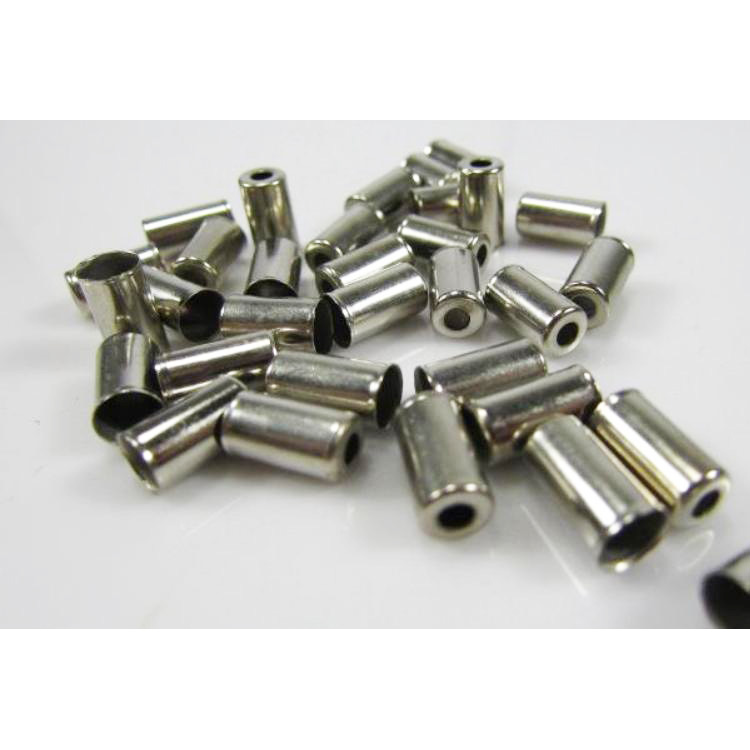

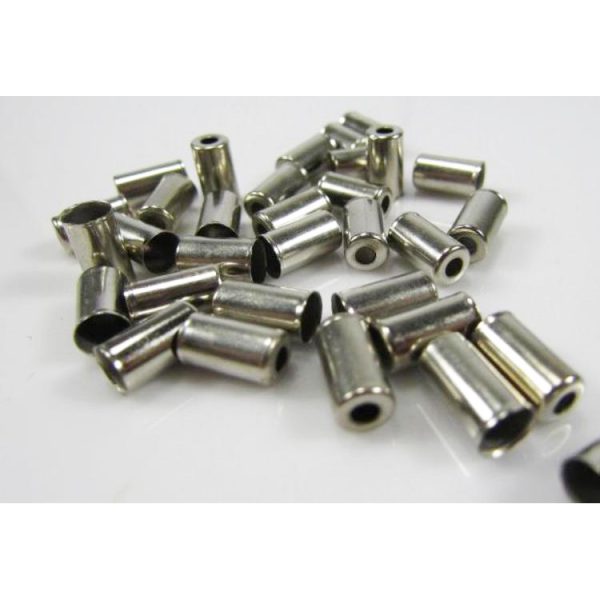

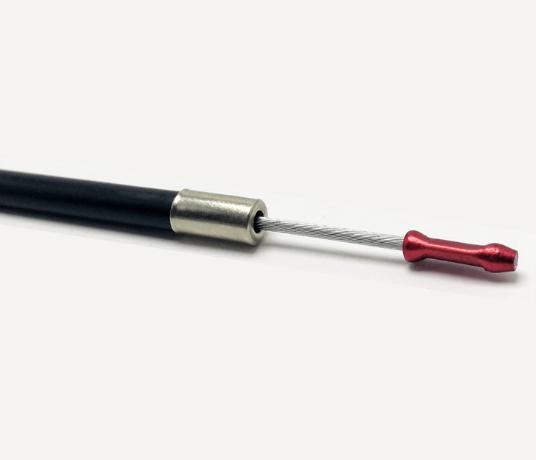

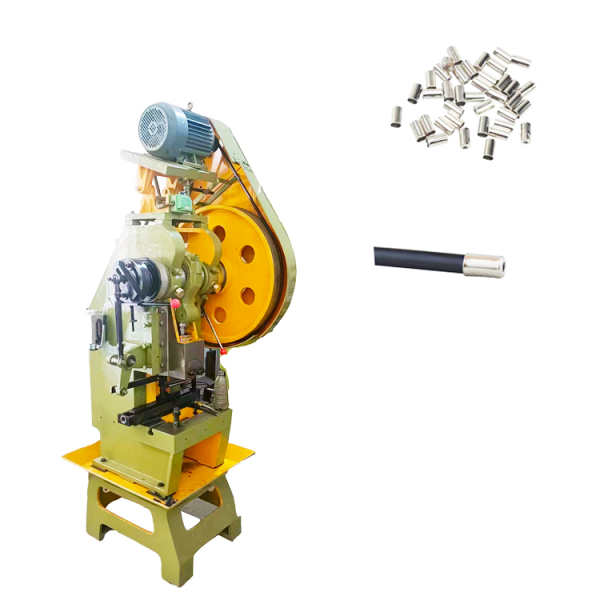

The bicycle brake cable end cap stamping line uses a high-speed punch and die to apply pressure to the copper / aluminum material, so that a certain shape of the bicycle brake cable end cap can be produced. That means the automatic work from coiled copper/aluminum strip to finished cable end cap with automatic feeding.
Features
- Automaticfeeding device
Put the copper strip (coil) into the feeding rack, and transport the copper raw material to the punching machine through the feeder to realize the simultaneous feeding and production.

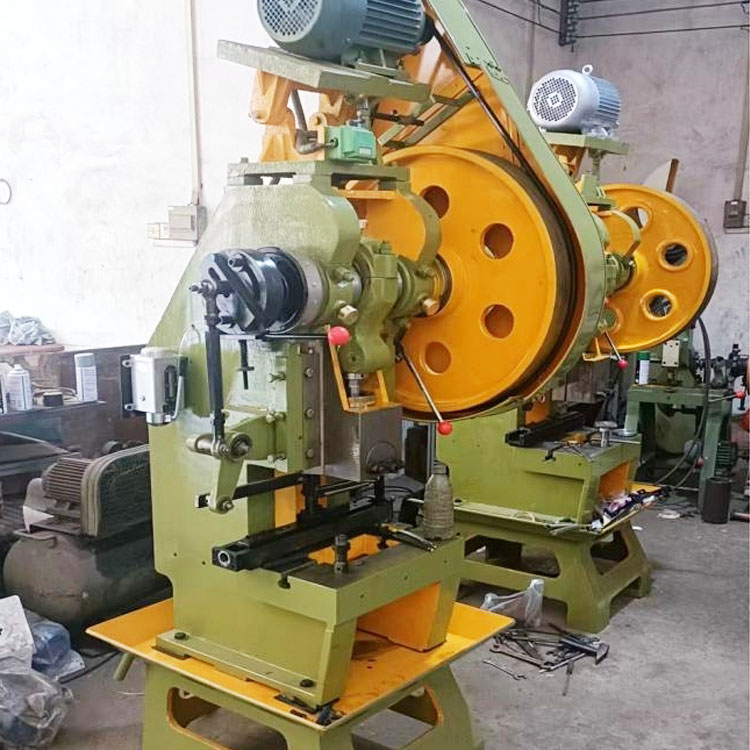

- Stamping press
- Under the action of stamping power, the machine tool drives the opening and closing of the mold, so that the copper/aluminummaterial in the middle of the mold is formed by cutting, punching, stretching and other actions.
- This equipment usesrigid rotary key clutch, which has simple structure, convenient operation and maintenance, stable work, small impact and low noise.
- Mold and Control System.
A continuous mold for one-time molding, after receiving the copper raw material, it is directly molded by the pressure of the upper and lower molds (bicycle cable cap), and then the next step is to punch holes in the middle of the molded. Burr-free, direct molding.
Configuration and Specifications
S.N | Specifications | Data |
1 | Nominal pressure | 160KN |
2 | Ram stroke | 57mm |
3 | Stroke time | 105-130times/min |
4 | Max. mold height | 135mm |
5 | Mold height adjustment | 55mm |
6 | Working table size | 450*256mm |
7 | Dimension | 1150x847x1910mm |
8 | Weight | 780kgs |
9 | Motor power | 1.5KW |
