Description
Summary

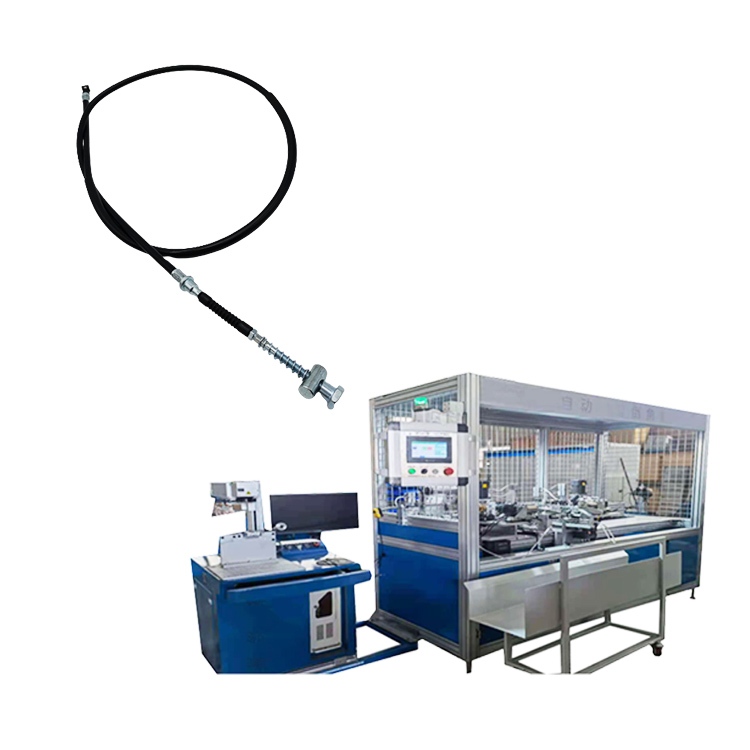

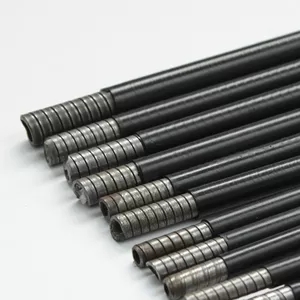

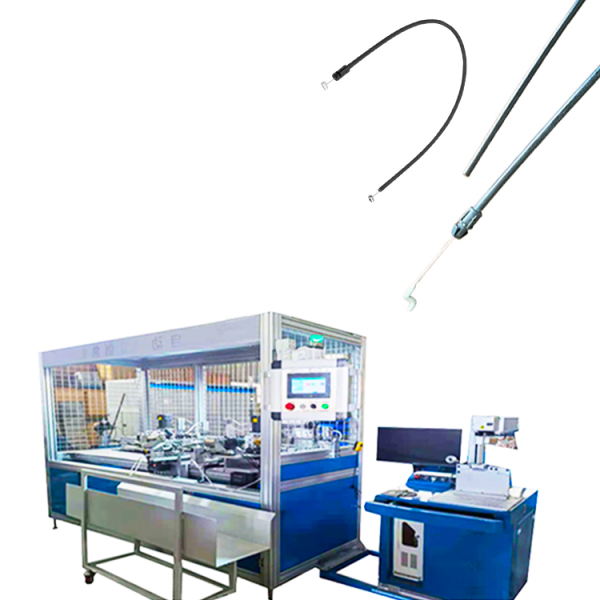

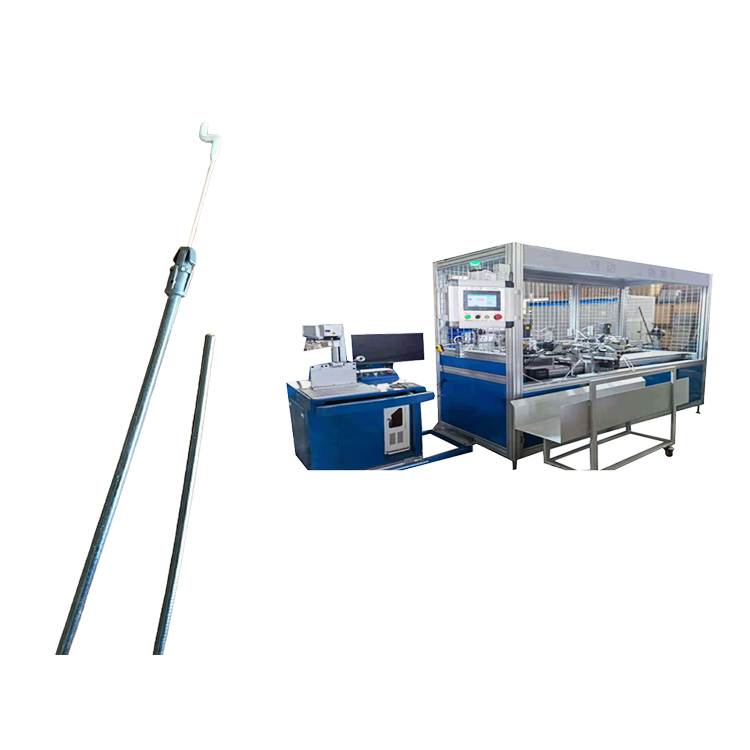

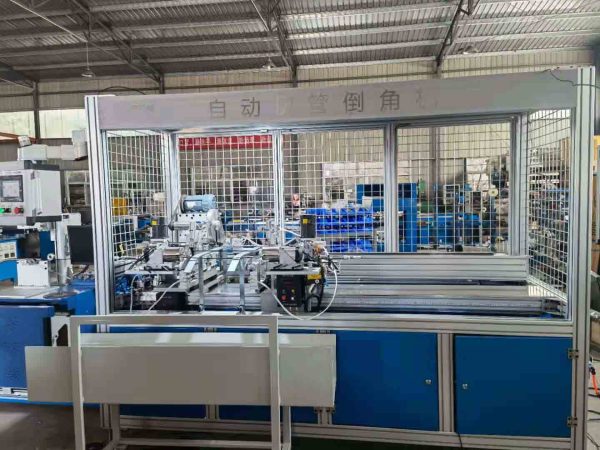

The outer casing cutting chamfering machine is mainly used for continuously cutting , chamfering in the inner hole and outer circle of coiled ф5-8mm hose . It shall be cut to different lengths according to different requirements, and the length can be adjusted. Input the product information and adjust it can process automatically when inputing the product by CNC system. The PVC coated cable is used for bike,motorcycle, cars, automobile,truck,tractor and so on
- The Features of this die casting machine
- The operation is stable and reliable with high cutting precision.
- The cutting speed is synchronized with the setting out speed.
- The setting out place adopts a mobile trolley, which is clean and environment-friendly, the operation and maintenance are much more convenient.
Specifications
No. | Name | Parameters |
1 | Outer casing diameter | 5-8mm |
2 | Wire feeder motor power | 1kw |
3 | Machine hand motor power | 0.4kw |
4 | Cutting motor power | 1.1kw |
5 | Machine power | 3kw |
6 | Machine weight | 500kg |
7 | Size | 2800*1000*1800mm |
