Description
Summary

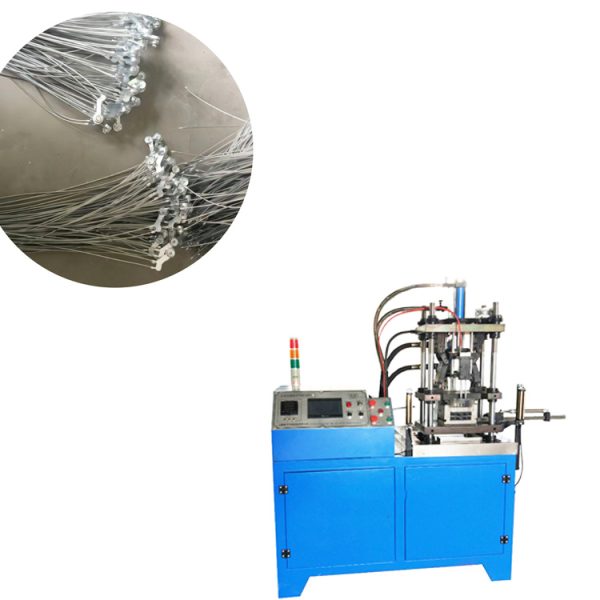

Our die cast machine has improved on the basis of other similar type machines, we adopts worldwide famous brands of electrical appliance and hydraulic component, high reliability, high efficiency of production, high automation. The zinc alloy, lead alloy and tin alloy which is manufactured by the machine has the best surface quality, and can be polishing, electro facing, and spray lacquer, and it is widely used in manufacturing toy, lockset, fishing gear, hardware decorating parts, electrical and electronic casting, automobile part, watchcase, clothing metal accessory and so on.
Feature
- Auto-mould height adjustment: ensure fast adjusting, stable clamping and high durability;
- dopt integrated injection cylinder, which has high efficiency, stability and safety;
- Mold closing protective system can protect operator’s security, and reduce mold damage probability.
- Central automatic lubrication system: timing quantitative and have safety testing function, ensure the normal operation of lubrication system;
- Control panel with easy operation and safe locking protection design.
- Reliable and durable automatic sprayer assures fast and stable production.
- The improved furnace adopts advanced design and material, more energy saving and durable;
- Mold closing/opening adopts electronic fix detecting system, and its precision is higher;
- The alarm information can be found conveniently and timely;
- Injection operation, opening and locking mould design etc. can be set on the screen rapidly and accurately;
- PLC control system with text interface configuration is convenient and flexible;
- High-strength steel alloy tie bar with chromium plated for high wear resistance and long service life;
- Thickened platen was made of excellent ductile cast iron with high rigidity, even stress and little distortion, which ensures the stability of die casting machine;
- Diagonal five point toggle was made of ductile cast iron with high rigidity, high durability, and more stable mold opening and closing;
- Hot set parts of injection system adopt high quality hot set steel.
Main technical data
NO. | Parameters | Data |
1 | Locking Force | 120KN |
2 | Motor capacity | 3.75KW |
3 | Locking stroke | 100mm |
4 | Die height( Min-Max) | 110 – 190mm |
5 | Injection Force | 14KN |
6 | Injection Stroke | 55mm |
7 | Injection weight（Zn） | 100g |
8 | Crucible Effective Capacity （Zn） | 70Kg |
9 | Oil pump volume | 30L/min |
10 | Space Between Tie Bars | 190×220mm |
11 | Bladder accumulator Capacity | 6.3L |
12 | System Working Pressure | 8Mpa |
13 | Electric Heating Tube Power | 7.5KW |
14 | Heating Ring | 1KW |
15 | Machine Dimensions | 120×90×210cm |
16 | Oil tank capacity | 120L |
17 | Machine weight | about 1000Kg |
