Description
Summary

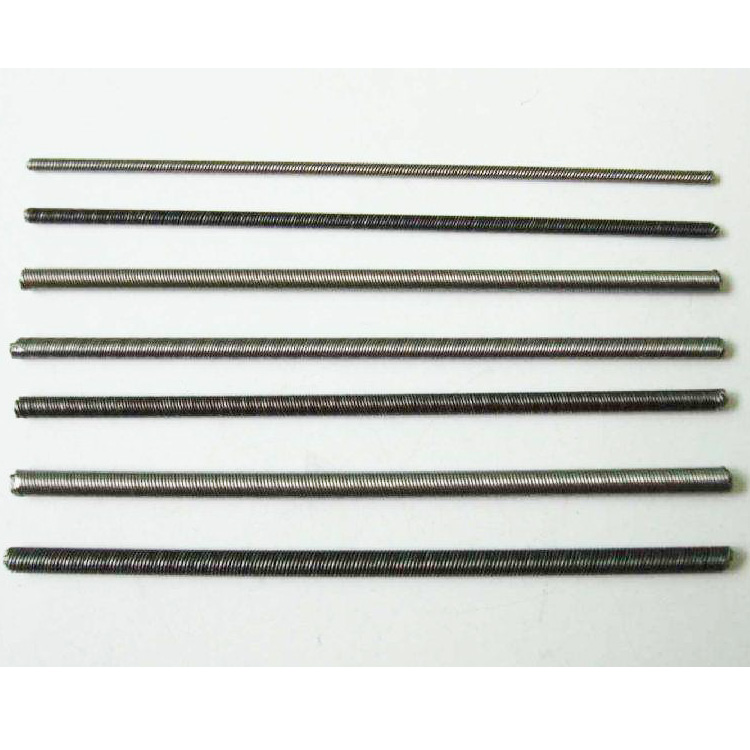

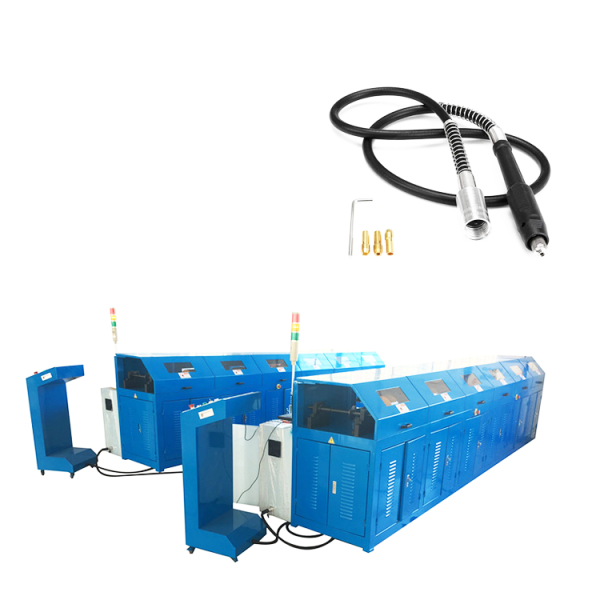

The flexible shaft inner core making machines are widely used for flexible shaft production. The flexible shaft can simplify the transmission machinery, at the same time, it has high transmission accuracy and wide use departments, such as concrete vibrator, air pick, marine water pump, transmission device of medical appliance and machine tool, and odometer of automobile can be driven by the flexible shaft. In addition, the flexible shaft can also mitigate the impact.

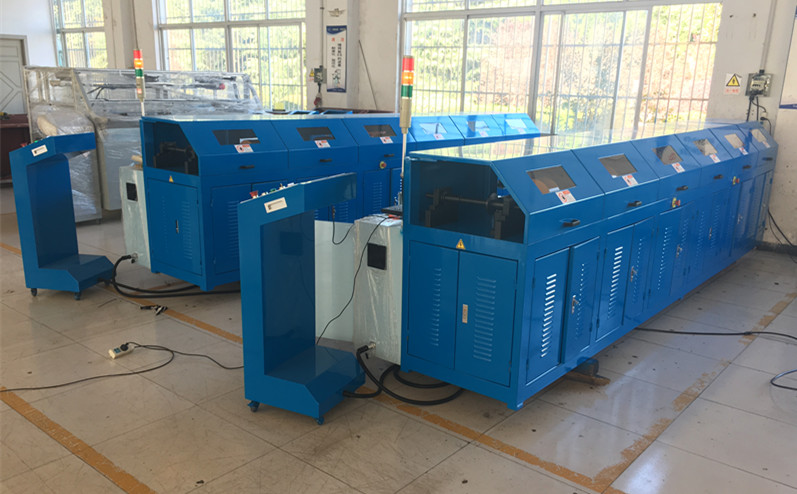

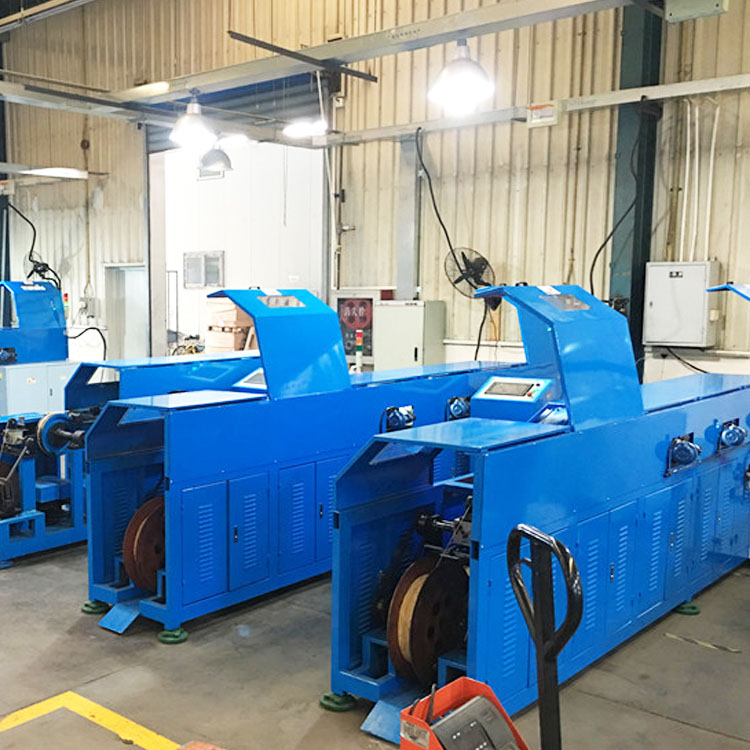

Structure
- Take-off device, positioning device, transmission device, shaft making device, braking device, wire arrangement device, take-up device and alarm device.
- The large disc of the shaft making is in linear layout, and the small disc of the wire drawing is in circular equidistant layout.
- Take-up positioning device (in coordination with inductor and counter).
- Coupling, reducer and high-precision servo motor speed control device.
- It is convenient to change the mold, using special structure clamp or according to the customer’s clamp.
- Adjustable in place delay.
Main technical data
NO. | Parameter | Data |
1 | Flexible shaft wire diameter | 01 central and 05 layers (4/4/5/6/8) , wire 0.9mm |
2 | Outer Diameter | ΦØ10.0 ± 0.3 mm |
3 | Motor power | 5KW |
4 | Electrical system | Counter, transformer, servo amplifier, relay. |
5 | Retarder | Parameter adjustment |
6 | Rotating speed of spindle plate | 60r/ min ~ 800r / min (adjustable) |
7 | Number of discs for shaft making and clamping | Adjustable |
8 | Coaxial accuracy | ≤ 0.1mm, the center of fixture and die can be adjusted easily. |
9 | Transposition accuracy | ≤ 0.1mm, parameter adjustment. |
10 | Shaft accuracy | 0.08mm ≤, parameter adjustment. |

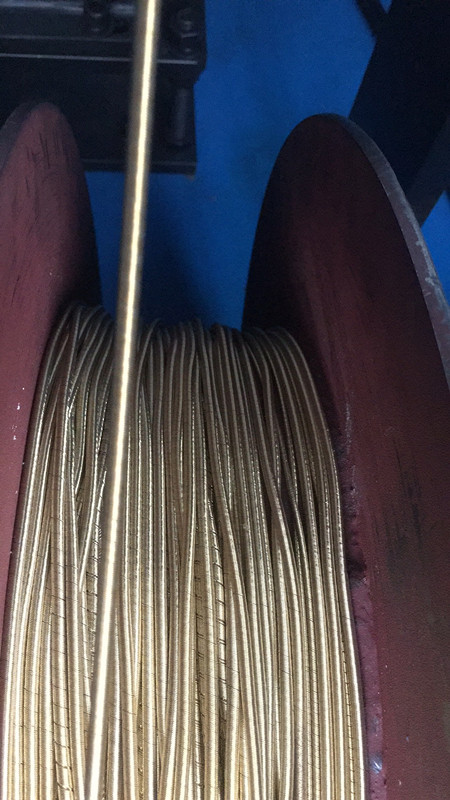

11 | Application | Flexible steel wire |
12 | Electric System | 380V, 50Hz, 3Phae (Customized) |
13 | Dimension | 4800 x 1300 x 1680 mm (Main machine) |
14 | Weight | About 1100 KG |
