Description
Summary

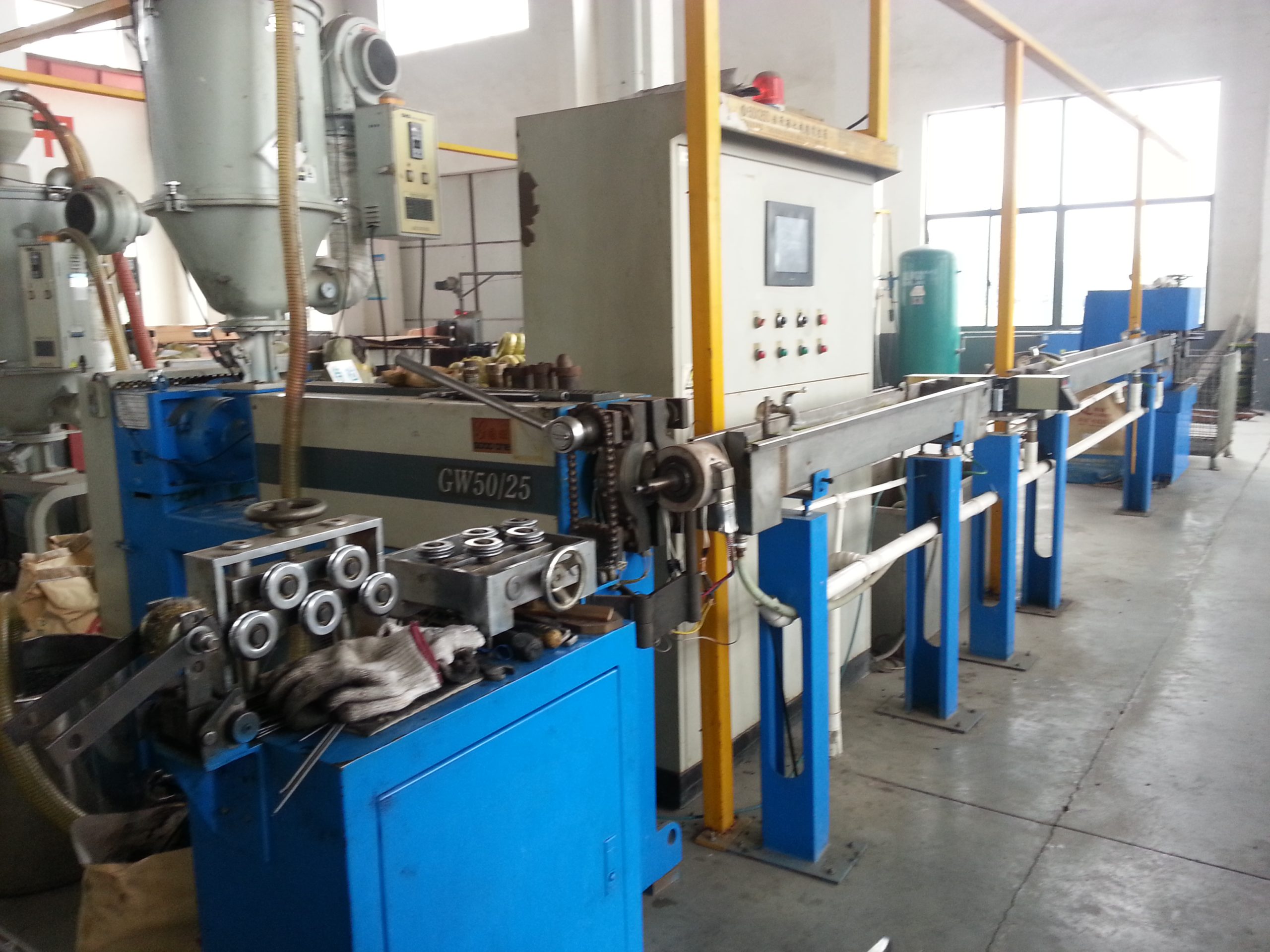

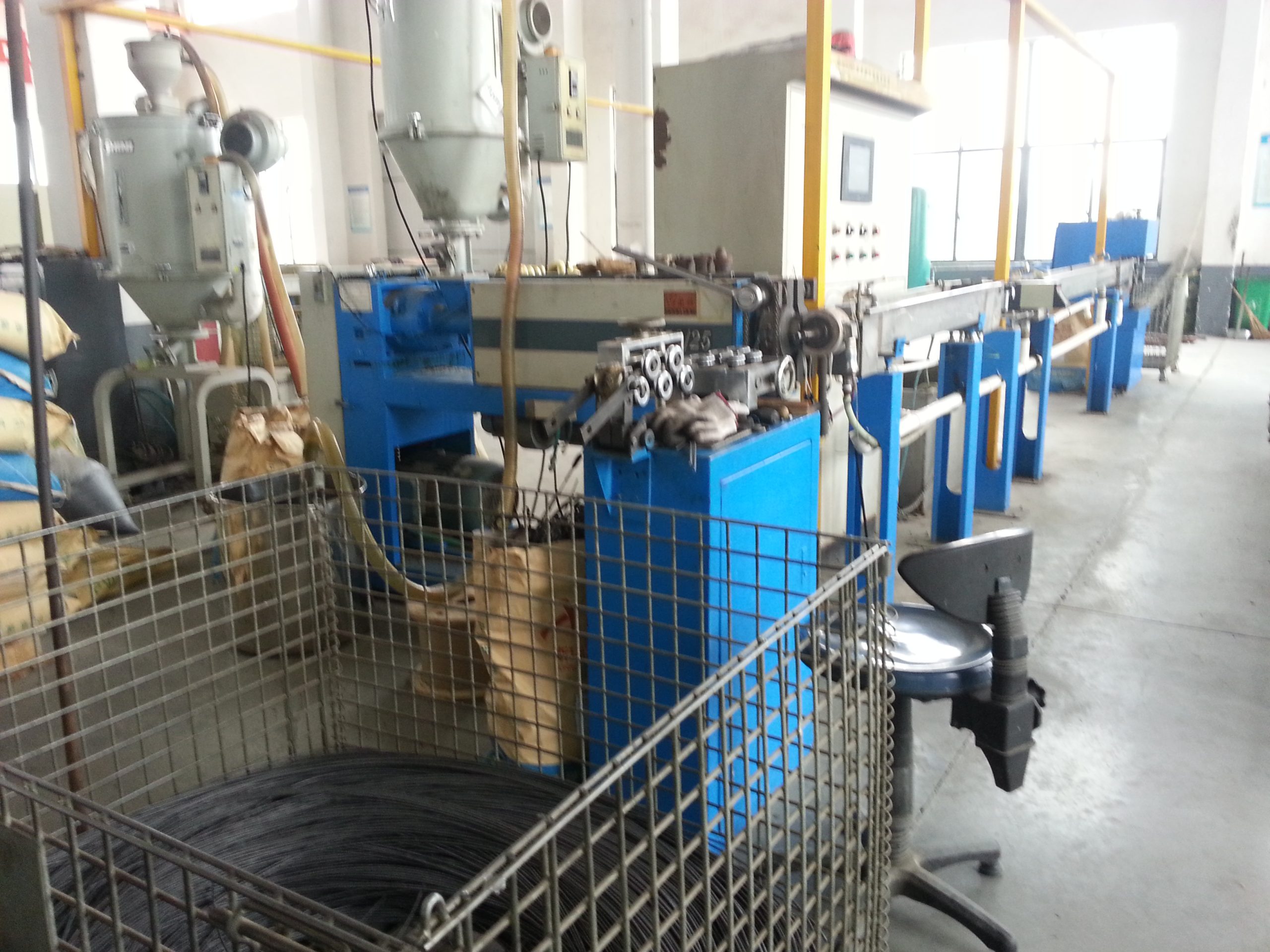

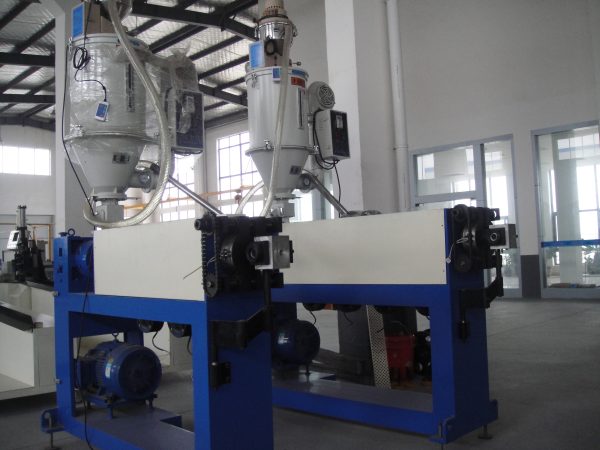

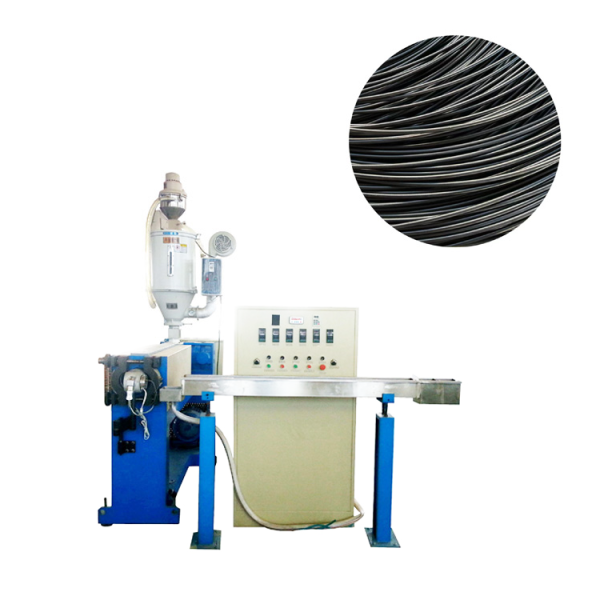

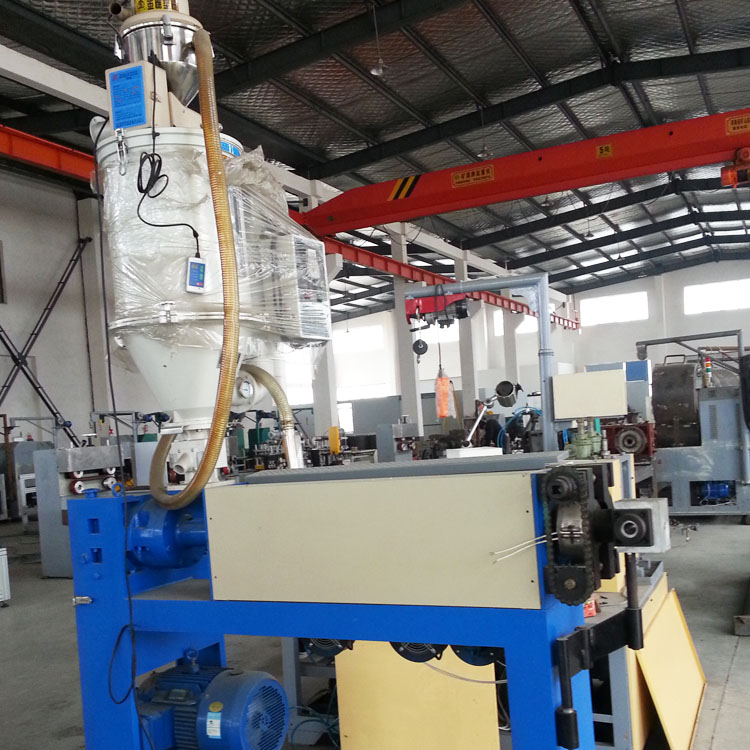

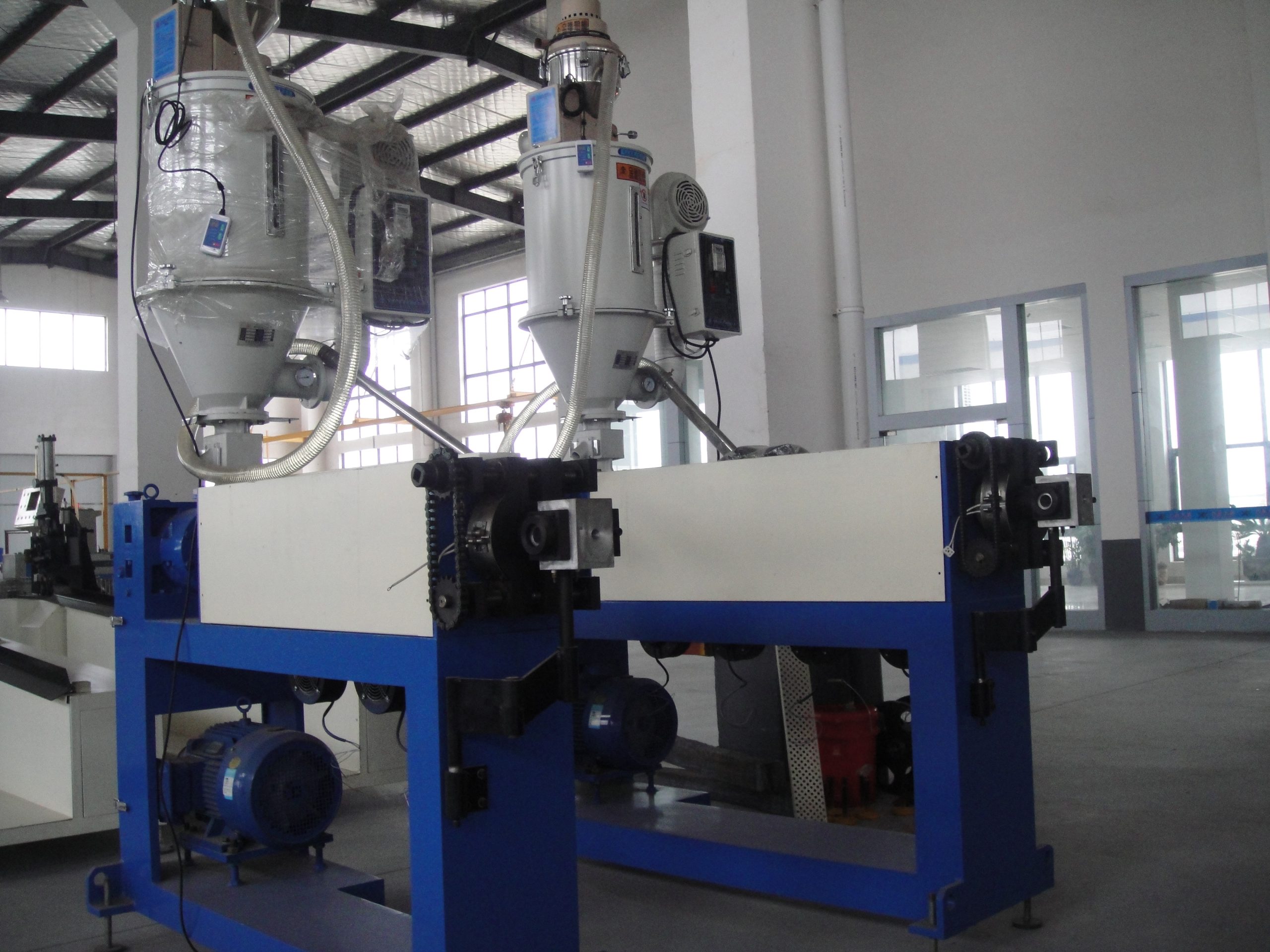

The Plastic coating machine is used to do plastic coating on outer casing conduit. With automatic plastic granule feeding into material hopper, and screw thread conveyor into heating unit, melting and extruding out from coating mold to get finished coat on casing conduit.
Configuration and performance
- Drawing machine:Include cooling system [stainless steel tank, sprayer, 110w water pump], 5 sets of pulley, one sets of drawing ball, and one set of 1.5kw speeding motor.
- Vacuum system:Include two vacuum tanks, vacuum pump, ball valve, vacuum gauge, inlet/outlet hose and 110w water pump.
- Control cabinet:10- include extruder, drawing machine, vacuum pump and heater, etc.
- The screw barrel has high precision and stable extrusion pressure.
- High heating efficiency, rapid temperature rise and good temperature maintenance.
- The equipment is manufactured precisely and the quality is stable.
Main technical data
S.N | Description | Date |
1 | Screw diameter, rate | 70mm,1:25 |
2 | Screw material | 38CrMoAla |
3 | Screw rotary speed | 0-100turns/min |
4 | Main motor power | 15kw |
5 | Casting aluminum heater power | 0.3kw each, 4 sets total |
6 | Fan power | 60w each, 4 sets total |
7 | Central line height | 1100mm |
